Turbocharger failure modes: Oil starvation

Share Resource:

Resource Highlights

In this article you will find out about identifying the turbocharger failure modes: Oil starvation.

Part resource centre how to header
Engine oil Fuel Systems Lubricants How to Technical Tip Drivers Technicians 4 min read

Engine oil is the lifeblood of a vehicle, and without it the modern turbo simply could not function.

How does a turbocharger work

The oil performs two key functions within the engine – firstly, it lubricates the various components which are required to move. With respect to a turbocharger, this means the main shaft assembly, onto which the compressor and turbine wheels are mounted.

Most modern turbochargers utilize a “plain” bearing system to control the movement of the main shaft. This means that they rely on a film of high-pressure oil to support the shaft, and consequently there is zero contact between the shaft and the housing. The shaft effectively ‘floats’ while it rotates at very high speed. Despite the film of high-pressure oil, the velocity with which the shaft must rotate in a modern turbo to generate the required flow of air (over 240,000rpm – that’s 4,000 rotations per second!) results in a very rapid build-up of heat. 

The second function of the engine oil is to transfer that build-up away from the highly stressed components, and thus prevent temperatures from rising to the level that would soften the construction materials, or cause total mechanical failure of the turbo. If the supply of engine oil is restricted, even momentarily, during high speed operation the resulting build-up of heat caused by the contact between the shaft and its bearing surface can lead to micro welding or shaft seizure, which can destroy the turbocharger within a matter of seconds.

Did you know many high-performance vehicles adopt the use of an add-on aftermarket “turbo timer?” This automatically allows the engine to idle for a predefined period after the key has been removed. The engine idling ensures a sustained supply of oil to the turbocharger to prevent oil starvation and carbon build up. 

Determining Oil Starvation

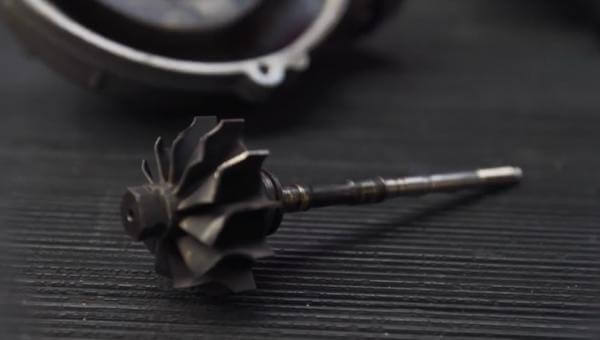

A common cause of turbocharger failure insufficient quality or supply of oil. If a turbocharger has failed due to oil starvation, there are several key indicators to investigate. Firstly, if the compressor wheel nut is missing, this is a clear indication of main shaft seizure. This may be categorized further by the micro-welding of the main shaft to its housing, locking it solid. 

In severe cases, the main shaft can snap or separate, resulting in the uncontrolled explosion of compressor -- and turbine-wheels into their respective housings. For these reasons, it is absolutely essential that you ensure the supply of oil to the turbocharger is at its optimum from the very first moment that the key is turned, and following these guidelines can help eliminate the risk of oil starvation problems.

Good practice when starting a vehicle for the first time after fitting a turbocharger is to crank the vehicle for 5 seconds while preventing starting. This can be done by disconnecting the injectors (or equivalent) which allows oil to prime the turbo bearings without the turbo shaft rotating at high speed.

Consequences of Oil Starvation

In each case of turbocharger failure through oil starvation, the end result is much the same as that of Foreign Object Impact, and thus should be treated in the same way. The rapid propagation of hard metallic particles throughout the air and oil systems denotes the need for a comprehensive and methodical cleaning and inspection process, prior to replacing the turbocharger. 

If You Discover Oil Starvation

  • When fitting a replacement turbocharger, always ensure that the oil supply and return pipes, filters and fittings are in as-new condition. Any restriction in these components will cause oil supply problems, and ultimately the failure of the replacement turbo. If in doubt, replace the entire oil supply and return system, and explain to your customer why this is necessary. Ensuring right-first-time fitment and function by replacing such parts is far more cost- and time-efficient than having to replace a second turbocharger on the same vehicle.
  • Always ensure that the engine oil and oil filter is replaced with brand-new OE quality parts when you fit a replacement turbocharger. Degraded, high-mileage engine oil cannot maintain its lubrication or viscosity properties, and a restricted oil filter can also directly contribute to oil starvation.
  • In cases of high-mileage vehicles, the entire oil supply system should be thoroughly inspected and cleaned where necessary at every service. This may require the removal of the sump, oil pump and internal oil feed lines, along with the application of an engine oil flushing solution and subsequent oil changes as per the guidelines issued by your vehicle manufacturer.
  • When replacing the turbocharger after an oil starvation-related failure, be sure to perform an oil pressure test wherever possible so as to identify any issues in the oil supply or return system. Identifying problems and taking preventative steps is always a better option than having to repair issues that could have been prevented. (Ensure the oil pressure test is carried out at two points, the oil pressure switch and the oil supply feed to the turbo).
  • Always ensure that the oil level is as per the recommendation of the vehicle manufacturer. Low oil levels can directly contribute to oil starvation, but excessively high oil levels can also cause oil retention within the bearing cartridge, resulting in the build-up of heat, and ultimately failure.
